Let's be honest – when was the last time you gave much thought to the oxygen sensor in your Drager ventilator? Probably not until it triggered that annoying "O2 calibration failed" alarm or your biomedical tech mentioned it during routine maintenance. But here's the reality: this unassuming little component is doing some of the most critical safety monitoring in your entire respiratory care workflow medical device components.

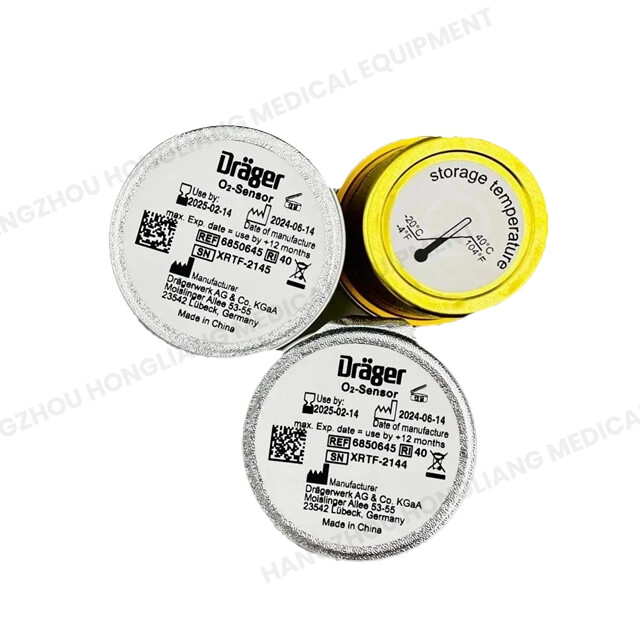

The Drager oxygen sensor 6850645 has been keeping patients safe since its introduction in 1977, and over 1.6 million units have been deployed worldwide. That's a lot of trust placed in a device smaller than a golf ball. In this guide, I'll share what I've learned about selecting, replacing, and maintaining these essential sensors. You can find compatible ventilator accessories at our online store for all your medical equipment parts medical equipment parts needs.
Before diving into specifics, let's demystify what's happening inside your ventilator or anesthesia machine. The oxygen sensor continuously monitors the concentration of oxygen (O2) being delivered to the patient. This isn't just about comfort – it's about survival.
When you set your ventilator to deliver 50% oxygen, you need assurance that 50% is actually what's reaching the patient's lungs. Too low means inadequate oxygenation (hypoxemia). Too high, especially over extended periods, can cause oxygen toxicity, particularly concerning for premature infants or patients with certain lung conditions.
The 6850645 operates using electrochemical principles – a clever bit of chemistry that generates an electrical current proportional to the oxygen partial pressure in the gas sample. This current gets converted to a digital reading your ventilator displays. When calibration fails or the sensor drifts significantly from expected values, patient safety is compromised.
Understanding the specs helps you appreciate why genuine OEM sensors outperform alternatives.
| Specification | Value |
|---|---|
| Part Number | 6850645 |
| Measuring Range | 0 to 100% by volume O2 |
| Response Time (T10-90) | 16 seconds |
| Operating Temperature | 15 to 40°C |
| Storage Temperature | -20 to 40°C |
| Dimensions | Ø 28mm, height 22mm |
| Weight | Approximately 20g |
| Expected Lifespan | 12+ months |
The 16-second response time might seem slow compared to some modern sensors, but it's perfectly adequate for most clinical monitoring scenarios. Drager intentionally prioritizes stability and accuracy over ultra-fast response for this model.
The 6850645 O2 sensor capsule serves multiple Drager platforms. Fabius Family includes Fabius GS, Fabius Tiro, Fabius MRI (yes, MRI-compatible versions exist). Evita Series includes Evita 4, Evita XL, Evita 2 dura. Babylog 8000 plus is for neonatal intensive care ventilator. Cicero is an anesthesia system. Oxydig is an intensive care ventilator.
Before ordering, verify which sensor variant your specific machine requires. Some newer models use different sensor technologies with extended lifespans but different form factors.
I know budget constraints are real in healthcare. But when it comes to oxygen monitoring, third-party sensors create risks that rarely justify the cost savings.
Genuine Drager 6850645 sensors are factory-calibrated specifically for Drager devices. The sensor's output characteristics are matched to the host machine's algorithms during development and testing. When you install a sensor with different output characteristics, even if it's technically "compatible," you introduce measurement uncertainty.
Clinical staff notice this as frequent calibration prompts, alarms for minor deviations, or display values that don't match expected ranges. Biomed teams spend extra time investigating and recalibrating. In worst cases, sensor drift could go unnoticed until quality assurance testing catches it.
Drager sensors undergo rigorous testing for accuracy across temperature ranges, humidity levels, and gas mixture variations. They comply with national and international requirements for medical device monitoring. Can you say the same about a generic replacement sourced from an unknown manufacturer?
Oxygen sensors don't fail dramatically – they degrade gradually, which makes detection tricky. Watch for these warning signs.
Frequent calibration failures – If your machine requires repeated O2 calibrations or won't hold calibration between daily checks, the sensor is likely aging out of specification.
Drifting displayed values – Noticeable differences between set oxygen concentration and displayed values, especially after warm-up periods.
Extended warm-up requirements – Sensors approaching end-of-life often need longer stabilization time before providing accurate readings.
Alarm history – Check your ventilator's alarm log. Frequent "O2 sensor" or "O2 calibration" alerts indicate sensor degradation.
Age-based replacement – Many facilities proactively replace sensors at 12-18 month intervals, regardless of apparent function, as part of preventive maintenance programs. Our suppliers offer high-quality respiratory equipment supplies ventilator accessories for all your replacement needs.
Proper calibration extends sensor life and ensures accuracy. Drager ventilators support both automatic and manual O2 calibration.
Automatic calibration occurs during daily startup self-tests. The machine compares sensor output against a known reference and adjusts internal algorithms accordingly.
Manual calibration can be performed during operation if you notice discrepancies. Navigate to the calibration menu, select O2, and follow on-screen prompts. The procedure typically takes under a minute and doesn't interrupt ventilation.
Pro tip: After replacing an O2 sensor, allow 15 minutes for warm-up before performing calibration. New sensors need this stabilization period to reach steady-state output.
When purchasing replacement sensors, authenticity matters. Work with distributors who can provide direct Drager sourcing documentation, lot numbers and manufacturing dates, temperature-controlled shipping to preserve sensor integrity, and reasonable warranty coverage (typically 90 days for sensors).
Avoid sensors that have been sitting in warehouses for years. Electrochemical sensors have limited shelf life even before installation. Check packaging dates and reject sensors older than 6-12 months from manufacture.
A: The 6850645 has an expected lifespan of 12 months or more under normal operating conditions. Actual lifespan depends on usage frequency, ambient conditions, and machine-specific factors.
A: This sensor works with Drager Fabius, Evita, Babylog 8000+, and Cicero anesthesia/ventilation systems. Always verify compatibility with your specific model.
A: Warning signs include frequent calibration failures, drifting O2 display values, extended warm-up times, and repeated O2-related alarms in the machine's event log.
A: While third-party sensors may physically fit, they often have different output characteristics that can cause calibration issues and measurement uncertainty. OEM sensors are recommended for critical monitoring applications.
A: Electrochemical sensors require stabilization after installation before providing accurate readings. Skipping warm-up leads to calibration errors and premature failure.
A: The 6850645 uses electrochemical cell technology with approximately 12-month lifespan. Newer OxyTrace and Oxycell sensors use oxygen pump technology with extended 24-30 month lifespans but require different hardware configurations.
