Let me share something I've seen happen too many times in hospitals: biomedical shops full of broken ECG writers, printers that won't feed paper, or worse – ECG reports that look like abstract art because the roller mechanism failed mid-print. The GE MAC series ECG writer has been a standard in cardiology departments for decades, and when its roller assembly fails, you're looking at potential diagnostic delays and frustrated clinicians.
If you're managing ECG equipment or searching for replacement parts like medical equipment parts, here's what you should know about the GE printer roller assembly 422396-003. Quality medical device components and reliable respiratory equipment supplies keep your diagnostic systems running smoothly.
ECG machines seem almost mundane until they're not working. Healthcare providers rely on printed ECG traces for immediate diagnosis, archival records, and comparison with prior studies. When your GE MAC 3500, 5000, or 5500 series writer starts malfunctioning, the entire diagnostic workflow gets disrupted.
The roller assembly plays a deceptively simple role: it feeds paper through the writer mechanism at precisely controlled speed while maintaining consistent contact pressure against the thermal print head. Sounds basic, right? But any variance in speed or pressure produces distorted traces that could lead to misdiagnosis.
Imagine trying to interpret an ECG where the rhythm looks irregular – but it's actually just a paper feeding problem. That's a patient safety issue hiding inside what looks like a simple mechanical problem.

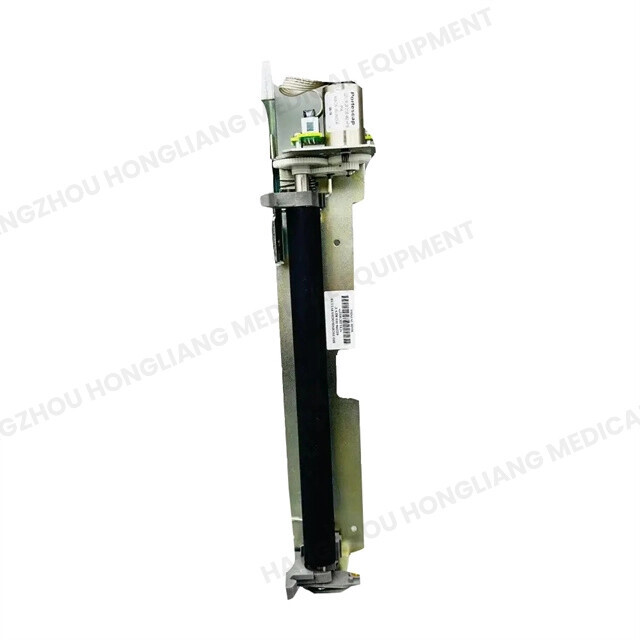

The part number 422396-003 identifies the roller assembly with motor for GE MAC series ECG writers.
| Specification | Details |
|---|---|
| Part Number | 422396-003 |
| Equivalent Part | 422396-002 |
| Compatible Systems | GE MAC 3500, MAC 5000, MAC 5500 series |
| Manufacturer | GE Healthcare |
| Product Category | Diagnostic ECG |
| Condition | New OEM |
| Motor Type | Miniature DC servo motor |
| Compliance | RoHS compliant |
The "with motor" designation is important – this isn't just a passive roller. The integrated DC servo motor provides precise position control and consistent movement. This is what separates OEM assemblies from simpler mechanical replacements.
The RoHS compliance indicates the assembly meets European Union standards for hazardous substance restriction, increasingly important for healthcare facilities with environmental compliance requirements.
Here's what to watch for in your MAC series ECG writers.
If the writer tries to feed paper several times before successfully printing, or if you're constantly clearing jams, the roller mechanism is struggling. Worn rollers lose friction and can't grip paper consistently.
Traces that are dark in some sections and faded in others suggest inconsistent paper-to-head contact. The roller isn't maintaining uniform pressure across the print width.
Missing portions of ECG traces indicate the paper stopped momentarily during printing. The motor or roller bearing has likely failed or is seizing.
A healthy writer is nearly silent. Whining, grinding, or clicking sounds suggest mechanical problems developing in the roller assembly.
Traces that aren't straight across the page, or appear to "wave" rather than print in clean lines, indicate paper isn't feeding at proper angle or speed.
If the writer attempts to print but produces only blank paper, motor failure is likely. The roller isn't moving paper through the mechanism at all.
This symptom points directly at roller or coupling failure. The motor receives power and attempts to drive the mechanism, but mechanical connection to the roller has broken.
The 422396-003 assembly combines multiple precision components.
The roller itself provides the paper-driving surface. Its shaft is manufactured from cold-rolled steel to withstand high loads, while roller bearings enable smooth rotation.
The integrated servo motor provides precise motion control. Unlike simple DC motors, servos can hold position accurately and respond to control signals for variable speed operation. The motor operates quietly even at higher speeds – no vibration during printing.
The control PCB manages motor operation based on input from the ECG machine's processor. This electronic brain coordinates paper movement with trace generation timing.
The spring mechanism (using music wire for fatigue resistance) maintains consistent pressure throughout the print cycle and across component lifespan.
This integrated design provides reliability and precision but means the entire assembly typically requires replacement when problems develop – individual component repair is rarely practical.
Roller assembly replacement isn't a simple field repair, but it's manageable with appropriate technical skills.
Professional service recommended – Due to the precision assembly and calibration requirements, most facilities rely on qualified biomedical engineers or GE service technicians for this repair.
Calibration verification required – After installation, the writer must be tested with known ECG signals to verify trace quality meets specifications.
Paper path inspection – While accessing the roller assembly, technicians should inspect the entire paper path for debris, contamination, or worn components.
Documentation – Maintain records of the replacement, including part numbers, serial numbers, and verification test results for compliance purposes.
Expect several hours of downtime depending on technician availability and whether simultaneous preventive maintenance is performed.
When sourcing the 422396-003, you'll encounter both new and refurbished options.
New OEM assemblies come directly from GE Healthcare manufacturing, often running $1,200-$1,500 depending on supplier. You receive fresh components with full warranty coverage.
Refurbished assemblies (typically replacing the earlier 422396-002 version) might cost $400-$600. These have been restored from returned units and tested, but their remaining service life is uncertain.
For low-volume facilities where ECG writers see occasional use, refurbished might make sense economically. For busy cardiology departments where printer reliability directly impacts diagnostic throughput, new OEM assemblies typically provide better long-term value.
Finding genuine 422396-003 roller assemblies requires working with established medical equipment distributors. Generic suppliers may claim compatibility but can't guarantee authenticity or proper storage.
Look for distributors who can provide direct GE Healthcare sourcing documentation, proper electronic component storage and handling, reasonable warranty terms (typically 90 days to 12 months), and technical support availability.
Be wary of significantly discounted parts – ECG equipment suppliers occasionally receive returned or stored inventory of questionable provenance. Verify your supplier's sourcing chain before purchasing.
A: The roller assembly is compatible with GE MAC 3500, MAC 5000, and MAC 5500 series ECG writers. Verify specific compatibility with your model before ordering.
A: The 422396-002 is an earlier version of the same assembly. 422396-003 represents the current replacement part, though both are often cross-compatible.
A: While third-party options exist, OEM assemblies are designed and tested for precise compatibility. Third-party parts may not meet GE's specifications for trace quality and reliability.
A: Diagnostic evaluation by qualified biomedical personnel can identify the specific cause of printing problems. Symptoms like uneven density might indicate thermal head issues rather than roller problems.
A: Coverage depends on your specific service agreement terms. Review your contract or contact GE service to understand what's included.
A: Experienced biomedical technicians typically complete the replacement in 2-4 hours, including calibration and verification testing.
