Precise oxygen delivery remains a non-negotiable requirement in critical care environments. The margin between therapeutic benefit and severe complications is exceptionally narrow. Delivering too much oxygen causes toxicity and oxidative stress, while delivering too little results in rapid hypoxia. Respiratory device manufacturers and clinical engineering teams face significant risks when integrating substandard components into life-support systems. Poor component selection leads to premature degradation and calibration drift under varying environmental conditions. It also exposes manufacturers to severe regulatory non-compliance and product recalls.
We will evaluate the technical requirements for selecting the right sensing technology. We balance performance metrics like response time and stability against implementation realities and patient safety outcomes. You will learn how to navigate technological trade-offs, manage environmental vulnerabilities, and establish robust criteria for component sourcing to ensure your respiratory devices perform reliably under clinical demands.
Technology Matching: The choice between electrochemical, solid-state, and paramagnetic oxygen sensor technologies dictates the baseline accuracy and lifespan of respiratory devices.
Environmental Vulnerability: Temperature, atmospheric pressure, and humidity directly alter sensor output; robust compensation mechanisms are mandatory for patient safety.
Operational Efficiency: Networked oxygen monitoring sensors drastically reduce clinical response times—by up to 63% compared to manual checks—directly impacting patient outcomes during adverse events.
Vendor Evaluation: Choosing a medical oxygen sensor supplier requires vetting for strict ISO/FDA compliance, supply chain transparency, and engineering support for integration.
Clinical thresholds for oxygen delivery leave no room for hardware error. Medical professionals rely on the Fraction of Inspired Oxygen (FiO2) to manage patient respiration. Undetected drops in FiO2 lead directly to hypoxia. This deprives vital organs of necessary oxygen and causes rapid tissue damage. Conversely, over-delivery carries equally severe risks. Vulnerable populations, particularly premature neonates, suffer from oxidative stress and hyperoxia. This condition often leads to retinopathy of prematurity or severe lung damage.
Sensor resolution and drift rates connect directly to the reliability of clinical alarms. Life-support systems depend on automated dosing adjustments based on continuous feedback. If a sensor drifts out of calibration, the device may deliver incorrect gas mixtures without triggering an alarm. High-resolution components ensure that even micro-fluctuations in gas concentration register immediately. This accuracy prevents automated systems from making harmful adjustments based on flawed data. Modern ventilators utilize proportional-integral-derivative (PID) controllers that constantly read sensor data to adjust gas blending valves. A lagging or inaccurate signal causes the PID controller to overshoot or undershoot the target FiO2, creating dangerous oscillations in patient oxygenation.
Real-time data acquisition is a baseline requirement for modern respiratory therapy. Engineers measure this capability using T90 response times. The T90 metric indicates how quickly a device registers 90% of a sudden step-change in gas concentration. Fast response times allow clinical systems to catch unexpected drops in oxygen instantly. Sluggish data acquisition delays mechanical intervention and compromises patient safety.
Different devices demand varying response profiles. Continuous mechanical ventilators require steady, highly stable readings over long durations. Portable oxygen concentrators operate differently. They rely on continuous feedback loops to dynamically adjust delivery based on patient inhalation patterns. An integrated oxygen monitoring sensor provides the real-time data necessary for these dynamic adjustments. Automated systems utilizing high-performance sensors reduce clinical response times to adverse events by up to 63% compared to manual intermittent checks.
Dynamic delivery systems execute several rapid steps during a single breathing cycle:
Detect the onset of patient inhalation through pressure or flow triggers.
Analyze the current oxygen concentration in the blending chamber.
Calculate the required valve adjustment to meet the target FiO2.
Actuate the proportional valves to deliver the precise gas mixture.
Verify the delivered concentration during the inspiratory phase.
If the sensing component fails to update within milliseconds, this entire sequence breaks down.
Sensors play a secondary safety role outside of direct patient dosing. Clinical environments, laboratories, and surgical suites utilize bulk gas storage and complex delivery networks. An ambient monitoring device acts as an essential guardian in these spaces. It alerts facility staff to harmful changes in room oxygen levels.
Slow gas leaks present a hidden danger in medical facilities. Faulty respiratory equipment parts or compromised supply lines can slowly displace breathable air with nitrogen or other gases. OSHA standards define an oxygen-deficient atmosphere as anything below 19.5%. Alternatively, pure oxygen leaks create severe fire hazards. Ambient monitors detect these gradual shifts long before they reach dangerous thresholds. This early detection capability protects healthcare workers and prevents catastrophic facility incidents.
Traditional fuel-cell technology remains the most common solution in respiratory care. These devices operate on a simple electrochemical principle. Oxygen diffuses through a membrane and reacts with a lead anode and a gold cathode bathed in a potassium hydroxide (KOH) electrolyte. This chemical reaction generates a small electrical current, typically between 9 and 13 millivolts in room air, which is proportional to the gas concentration. The device measures this current to determine the oxygen percentage.
These components offer significant cost-effectiveness and ease of integration. They generate their own voltage, simplifying circuit design. However, they carry inherent physical limitations. The lead anode oxidizes during the reaction. This makes the oxygen sensor a consumable component with a finite lifespan. Chemical depletion accelerates in high-concentration environments. Manufacturers must design equipment with easy access panels to facilitate routine replacement cycles.

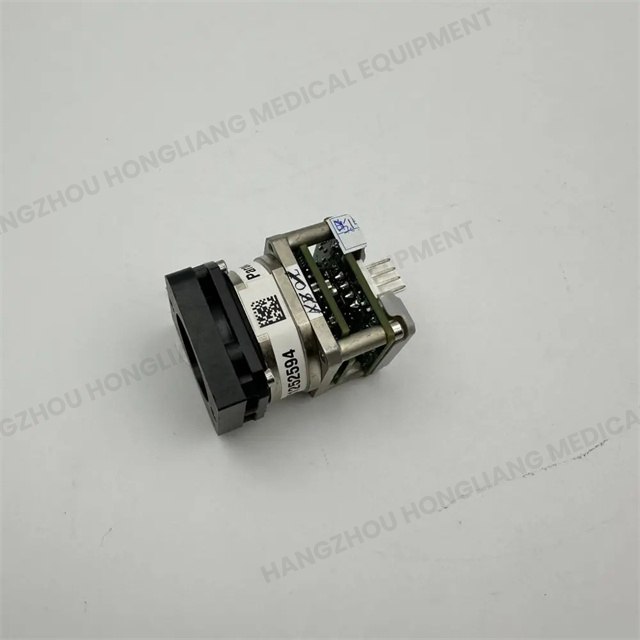

Paramagnetic technology utilizes the unique magnetic susceptibility of oxygen molecules. Unlike most gases, oxygen is highly attracted to magnetic fields. A paramagnetic oxygen sensor measures the physical force exerted by oxygen molecules when introduced into a strong magnetic field. This force displaces a specialized nitrogen-filled glass dumbbell suspension mechanism. Optical systems then measure the exact degree of displacement to calculate the gas concentration.
This technology offers distinct advantages for life-support systems. It is entirely non-depleting. The mechanism involves no chemical consumption, resulting in multi-year operational stability and high precision. These benefits contrast with higher initial integration costs. The internal suspension mechanisms are also sensitive to mechanical shock. Engineers typically reserve this technology for stationary anesthesia machines and high-end critical care ventilators where long-term stability outweighs mobility requirements.
Emerging solid-state and fluorescence-based technologies represent the next generation of gas analysis. Optical sensors use an LED light source to excite a specialized fluorescent dye, often a ruthenium complex, coated on a substrate. The presence of oxygen quenches this fluorescence. The device calculates gas concentration by measuring the decay rate or phase shift of the emitted light.
These components deliver superior performance in environments where concentrations fluctuate rapidly. They exhibit no cross-sensitivity to anesthetic gases or nitrous oxide. This makes them highly reliable in complex surgical settings. Engineers must weigh these performance benefits against current market availability and integration complexity. Optical systems require sophisticated digital signal processing and precise calibration algorithms during manufacturing.
Technology Type | Operating Principle | Typical Lifespan | Primary Advantage | Primary Limitation |
|---|---|---|---|---|
Electrochemical (Galvanic) | Chemical reaction generates current | 12 - 24 Months | Cost-effective, easy integration | Consumable, depletes over time |
Paramagnetic | Magnetic field susceptibility | 5+ Years | Non-depleting, high precision | Sensitive to mechanical shock |
Solid-State / Optical | Fluorescence quenching | 3 - 5 Years | No cross-sensitivity to anesthetics | Complex digital integration |
Operating atmosphere temperature heavily influences electrochemical output. Warmer atmospheres accelerate the internal chemical reactions within fuel cells according to the Arrhenius equation. This acceleration increases the electrical current output even if the actual gas concentration remains static. Without correction, a device operating in a warm transport vehicle will display falsely elevated readings compared to a climate-controlled ICU.
Engineers must implement robust mitigation strategies to ensure dosing accuracy. A reliable ventilator oxygen sensor requires built-in Negative Temperature Coefficient (NTC) thermistors to monitor internal temperatures continuously. Device firmware utilizes algorithmic temperature compensation to adjust the raw analog signal. This mathematical correction ensures the displayed clinical value reflects the true gas concentration regardless of ambient thermal conditions.
Sudden pressure changes pose significant risks to gas measurement accuracy. Transport ventilators and hyperbaric environments subject equipment to rapid atmospheric shifts. Traditional sensors rely on a capillary pore to control gas diffusion. When subjected to a sudden pressure differential, gas forces its way through the capillary barrier. This creates a bulk flow rather than controlled Knudsen diffusion, resulting in erratic and false readings.
Mechanical design considerations must address these pressure shocks. Engineers design specialized manifolds to buffer rapid pressure changes before they reach the sensing membrane. Advanced components utilize modified diffusion barriers that resist bulk flow under dynamic pressure conditions. Proper mechanical integration stabilizes the membrane and prevents false clinical alarms during patient transport.
Breathing circuits operate at near 100% relative humidity to protect patient airways. This high-moisture environment introduces severe risks for electronic components. Condensation can easily form on the sensor face. A microscopic layer of water physically blocks gas diffusion into the sensing element. This blockage causes the device to register a sudden, false drop in concentration, triggering immediate clinical alarms. Furthermore, high water vapor content physically dilutes the oxygen concentration in the gas mixture, requiring compensation algorithms to calculate the dry-gas equivalent.
Managing condensation requires strategic hardware design. Manufacturers utilize hydrophobic membranes, such as expanded polytetrafluoroethylene (ePTFE), to repel liquid water while allowing gas molecules to pass freely. Strategic placement within the exhalation and inhalation tracts also prevents moisture pooling. Engineers position components at specific angles to ensure gravity pulls condensation away from the active diffusion area.
Sourcing components for life-support equipment requires strict adherence to regulatory standards. You must verify that a medical oxygen sensor supplier maintains comprehensive ISO 13485 certification. This standard dictates specific quality management protocols for medical device manufacturing. Components must also support CE marking requirements under the Medical Device Regulation (MDR) and FDA 510(k) compatibility for the final respiratory device.
Risk mitigation depends heavily on supply chain transparency. Complete lot traceability is mandatory. If a field failure occurs, manufacturers must trace the exact batch of raw materials used in the faulty component. Documented quality management systems mitigate recall risks by isolating manufacturing defects quickly. Suppliers lacking rigorous traceability protocols expose your business to unacceptable liability.
Manufacturing capacity and lead times directly impact your production schedules. Evaluate the supplier's ability to scale production during unexpected surges in global demand. A reliable partner maintains buffer inventory and demonstrates resilient raw material sourcing. Supply chain bottlenecks for critical sensing components halt entire ventilator production lines.
Procurement teams must evaluate the upfront cost of the component against its guaranteed operational lifespan. Electrochemical cells require frequent replacement, creating recurring logistical demands. Solid-state options demand higher initial capital but reduce field maintenance requirements. Balance these factors against your specific device warranty structures and expected field service intervals.
Hardware integration rarely follows a plug-and-play model. Evaluate the supplier's engineering support capabilities. Can they provide custom form factors to fit proprietary manifold designs? Do they offer components with native digital communication protocols like I2C or UART? Digital outputs simplify PCB design and reduce the need for complex analog-to-digital conversion on your main board.
Manufacturing efficiency relies on streamlined calibration routines. Ask suppliers for detailed guidance on baseline calibration during your assembly process. A strong engineering partner provides clear documentation on burn-in times, expected zero-drift tolerances, and span calibration procedures. This support reduces bottlenecks on your factory floor and ensures consistent out-of-the-box accuracy.
All gas sensing technologies experience drift over their lifecycle. Zero-drift occurs when the baseline reading shifts in the absence of the target gas. Span-drift happens when the sensitivity to the target gas degrades over time. Chemical depletion, environmental exposure, and aging diffusion barriers drive this inevitable degradation.
Mitigating drift requires intelligent software integration. Device firmware must execute automated daily calibration routines. Engineers program ventilators to perform 21% room air checks or 100% pure oxygen flushes during standby modes. These automated routines calculate new offset values and adjust the baseline reading without manual intervention. This software strategy extends the usable life of the hardware and maintains strict dosing accuracy.
Electrochemical cells generate exceptionally low-voltage analog signals, often measured in millivolts. These weak signals are highly vulnerable to electromagnetic interference (EMI) generated by other components within complex medical devices. Pumps, blowers, and power supplies create electrical noise that distorts the analog reading, leading to erratic clinical data. Hospital environments also introduce external radio frequency interference (RFI) from electrosurgical units and imaging equipment.
Robust hardware design mitigates EMI risks. Engineers must employ strict PCB grounding techniques and utilize shielded wiring for all analog connections. Implementing low-pass filters on the circuit board helps strip away high-frequency electrical noise before it reaches the microprocessor. Transitioning to components with integrated digital outputs provides the strongest protection. Digital signals resist electrical noise and ensure the data reaching the main processor remains perfectly intact. Proper signal processing guarantees the reliability of the final clinical display.
Patient safety remains directly downstream of oxygen sensor accuracy, stability, and environmental resilience. Substandard components compromise life-support systems, trigger false alarms, and expose patients to severe physiological risks. Selecting the correct technology requires a deep understanding of clinical demands and environmental variables.
When shortlisting technologies, default to electrochemical cells for cost-sensitive, highly portable, or easily replaceable applications. Upgrade to paramagnetic or solid-state technologies for critical care ventilators and anesthesia machines that demand multi-year stability and rapid response to unexpected gas fluctuations.
Take the following steps to secure your respiratory device manufacturing process:
Request comprehensive technical data sheets and cross-sensitivity reports from your shortlisted suppliers.
Procure evaluation samples and conduct rigorous bench testing under simulated extremes of temperature, pressure, and humidity.
Program automated daily calibration routines into your device firmware to manage inevitable component drift.
Audit potential suppliers for strict ISO 13485 certification and complete lot traceability before finalizing any procurement contracts.
A: Replacement frequency depends entirely on the underlying technology. Traditional galvanic fuel cells typically require replacement every 12 to 24 months due to chemical depletion. Conversely, paramagnetic and solid-state sensors are non-depleting and can often last the entire operational lifetime of the respiratory device, usually exceeding five years.
A: An oxygen sensor refers to the raw, base component that detects gas concentration. An oxygen monitoring sensor generally describes a fully integrated assembly. This assembly includes the raw component alongside digital signal processing, ambient leak detection capabilities, and programmable clinical alarms ready for immediate facility use.
A: Temperature physically alters the rate of chemical reactions within fuel-cell technologies. A warmer operating environment accelerates these reactions, causing the device to output a higher electrical current even if gas levels remain static. This necessitates built-in thermistors and electronic temperature compensation algorithms to maintain accurate readings.
A: Anesthesia machines operate in complex gas environments. Paramagnetic technology is preferred because it measures magnetic susceptibility rather than relying on chemical reactions. This makes them highly accurate, non-depleting, and completely immune to cross-sensitivity from nitrous oxide and volatile anesthetic agents used during surgery.
A: Drift occurs due to several physical factors. Chemical depletion of the anode in galvanic cells is the primary cause. Additionally, prolonged environmental exposure to extreme humidity, pressure shocks causing bulk gas flow, and the natural aging of the diffusion barrier all contribute to gradual baseline and span drift.
A: Verify quality by auditing their regulatory credentials. Demand proof of active ISO 13485 certification and adherence to relevant medical device directives. Furthermore, require documented failure rates, verify their capacity for complete lot traceability, and assess their engineering support for digital integration and calibration routines.
