Pulse oximetry functions as a non-invasive method for measuring oxygen saturation and pulse rate. Clinical engineers and procurement teams face daily operational challenges managing these devices. You must balance sensor durability against cross-contamination risks while evaluating OEM versus aftermarket compatibility across large monitor fleets. A compromised peripheral sensor directly leads to compromised patient data. This guide provides a technical evaluation framework to help healthcare facilities select the right equipment. We will cover how to ensure seamless patient monitor integration and identify reliable supply chain partners. You will learn specific methods to verify pin configurations, match calibration technologies, and maintain signal integrity from the patient bed to the display screen.
Compatibility is Non-Negotiable: Matching the sensor's pin configuration and calibration technology to the specific patient monitor (e.g., Nellcor, Masimo, Drager) is critical to avoid signal failure and inaccurate readings.
Application Dictates Form Factor: The choice between a reusable SpO2 sensor and a disposable unit hinges on clinical environment protocols (e.g., OR vs. general ward) and infection control requirements.
Signal Integrity Requires Proper Cabling: Utilizing the correct SpO2 extension cable mitigates motion artifacts and signal degradation between the patient and the monitor.
Supplier Vetting Reduces Risk: Partnering with a certified patient monitor accessories supplier ensures regulatory compliance (FDA/CE), consistent inventory, and verifiable warranty support.
Pulse oximetry relies on fundamental optical physics. The SpO2 sensor transmits two specific wavelengths of light through a pulsating capillary bed. One beam is red light at approximately 660 nanometers. The other is infrared light at approximately 940 nanometers. Oxygenated hemoglobin absorbs more infrared light and allows more red light to pass through. Deoxygenated hemoglobin does the exact opposite.
A photodetector sits on the opposite side of the tissue bed. It measures the unabsorbed light passing through the finger, earlobe, or toe. The sensor continuously captures this fluctuating light absorption. The system then calculates the ratio of oxygenated hemoglobin to deoxygenated hemoglobin. This ratio translates into the clinical oxygen saturation percentage displayed on the screen.
To understand the exact sequence of signal acquisition, consider these operational steps:
The monitor sends a low-voltage electrical current to the sensor LEDs.
The red and infrared LEDs pulse in rapid succession, often hundreds of times per second.
The photodetector captures the transmitted light after it passes through arterial blood, venous blood, and surrounding tissue.
The sensor transmits this raw analog data back through the cable to the monitor.
The monitor isolates the pulsatile arterial signal from the non-pulsatile background noise.
Standard sensors measure overall hemoglobin saturation. They cannot differentiate between oxygen molecules and other bindings. For example, carboxyhemoglobin in carbon monoxide poisoning looks identical to oxygenated hemoglobin to a standard sensor. This limitation leads to falsely elevated readings in specific emergency scenarios. Medical staff must remain aware of dyshemoglobins when assessing trauma patients.
Physiological variables also disrupt light absorption. The FDA recently highlighted scrutiny regarding skin pigmentation. High levels of melanin scatter light differently, causing overestimation of oxygen levels in patients with darker skin tones. Poor peripheral perfusion, cold extremities, and thick nail polish also impede the optical pathway. Motion artifacts remain a persistent challenge. Patient movement mimics the pulsatile flow of blood, confusing the photodetector.
The sensor alone does not calculate the final reading. It merely captures raw analog data. This low-voltage analog signal travels from the sensor site to the patient monitor. The transmission must remain clean and free from electrical interference. The monitor acts as the brain of the operation, receiving these continuous electrical pulses.
Once the signal reaches the monitor, complex algorithms take over. The monitor's software filters out ambient noise and motion artifacts. It isolates the true pulsatile arterial signal from venous blood and surrounding tissue. The processor then calculates the pulse rate and displays the final percentage on the digital interface.
Software calibration must match the hardware specifications perfectly. Different manufacturers use proprietary calibration curves. If the monitor expects a specific resistor value from the sensor and receives a different one, the algorithm fails. This mismatch results in either a blank screen or dangerously inaccurate clinical data. Proper integration ensures the algorithm interprets the optical data exactly as intended.
Healthcare facilities constantly evaluate the balance between equipment longevity and infection control. A reusable SpO2 sensor offers significant return on investment for short-term monitoring. General wards and outpatient clinics rely heavily on these durable units. Manufacturers typically design them with hard-shell plastic clips or soft silicone boots. They withstand hundreds of applications if maintained correctly.
Strict cleaning protocols are mandatory for reusable fleets. Staff must wipe down the optical lens and surrounding housing between every patient. However, harsh solvents or abrasive wipes degrade the materials. Autoclaving is strictly prohibited. Extreme heat destroys the delicate photodetector and LED components. Clouding on the optical lens directly impacts accuracy, forcing premature replacement.
Disposable sensors serve a different clinical necessity. High-acuity environments like the Intensive Care Unit (ICU) and Neonatal Intensive Care Unit (NICU) demand single-patient-use items. Isolation wards also require disposables to mitigate healthcare-associated infections (HAIs). These sensors use medical-grade adhesives to stay in place for days. Once the patient discharges, the sensor goes into the medical waste bin, eliminating cross-contamination risks entirely.
Feature | Reusable Sensors | Disposable Sensors |
|---|---|---|
Primary Environment | General wards, outpatient, spot-checking | ICU, NICU, isolation wards, OR |
Infection Control | Requires strict manual disinfection between uses | Single-patient use eliminates cross-contamination |
Material Construction | Hard plastics, soft silicone, Kevlar cables | Flexible bandages, medical-grade adhesives, micro-foam |
Durability | High (months to years with proper care) | Low (designed for days or weeks on one patient) |
The traditional finger SpO2 sensor remains the industry standard. It provides a highly accessible site for both spot-checking and continuous monitoring. The index or middle finger usually offers an excellent capillary bed for light transmission. This placement works perfectly for stable adults with normal peripheral blood flow.
Clinical realities often require alternative placement sites. Severe trauma, peripheral vasoconstriction, or hypothermia can compromise digit perfusion. When blood retreats to the core, finger readings drop or fail entirely. Severe burns or extensive bandages on the hands also rule out finger placement. In these scenarios, clinicians must transition to different probe designs.
Consider these alternative placement options when finger sensors fail:
Earlobe Sensors: The earlobe has a rich vascular bed and is less susceptible to peripheral vasoconstriction.
Forehead Reflectance Sensors: These work well for patients on vasopressors or those with severe peripheral shutdown.
Toe Sensors: These provide an option for adults with upper extremity trauma or for pediatric patients where foot placement is more secure.
Nasal Alar Sensors: These capture signals directly from the facial artery, offering rapid response times during surgery.
Patient demographics dictate sensor engineering. An adult SpO2 sensor is designed for patients weighing more than 40 kilograms. These sensors feature specific clip tension to hold firmly without restricting blood flow. The light emitters and detectors are spaced to accommodate adult digit thickness. They play a dual role, capturing both arterial blood saturation levels and continuous pulse rate with high fidelity.
Pediatric and neonatal sensors require entirely different specifications. A hard clip would cause severe tissue damage to a premature infant. Neonatal sensors utilize soft, flexible wrap designs. They secure around the foot or hand using gentle, hypoallergenic adhesives. The emitter and detector must align perfectly across a much smaller, more delicate capillary bed. Misalignment by even a few millimeters causes signal failure.
Weight parameters guide these selections strictly. Infant sensors generally cover 3 to 15 kilograms. Pediatric sensors handle 15 to 40 kilograms. Using an adult clip on a small child results in ambient light interference, as the housing does not seal around the finger. Using a pediatric sensor on an adult stretches the components, distorts the optical path, and breaks the internal wiring.
Hospitals must choose between Original Equipment Manufacturer (OEM) sensors and third-party compatible options. OEM sensors carry the brand name of the monitor manufacturer. They guarantee out-of-the-box functionality. Third-party compatible sensors offer similar performance at a different price point. Verifying their internal technology is mandatory before deployment.

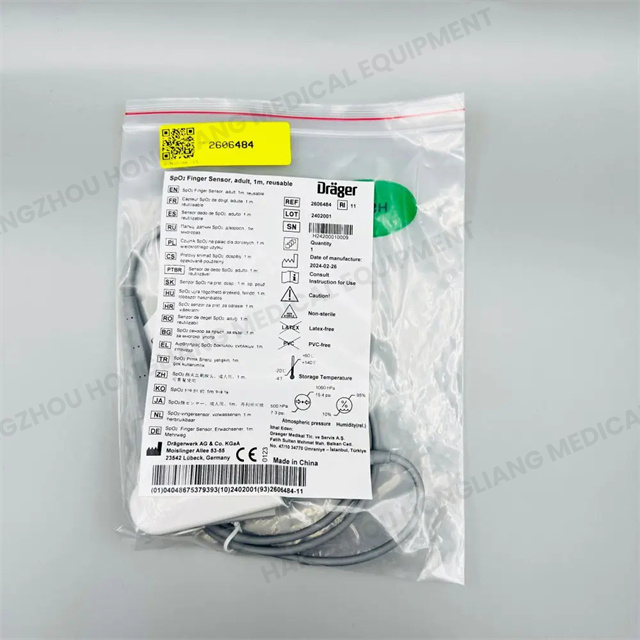

Consider the integration of a Drager SpO2 sensor. Drager monitors often utilize specific processing technologies, such as Masimo SET or Nellcor Oximax. A compatible sensor must contain the exact microchip or resistor configuration required by that specific module. If a hospital purchases a generic sensor without verifying Oximax compatibility, the Drager monitor will reject the signal.
Counterfeit or unverified sensors introduce severe clinical risks. These cheap alternatives often lack proper shielding and use substandard LEDs. They may provide a reading, but the accuracy drops drastically during motion or low perfusion. Using unverified sensors also exposes the hospital to legal liabilities if patient care suffers due to equipment failure. Always source from certified manufacturers.

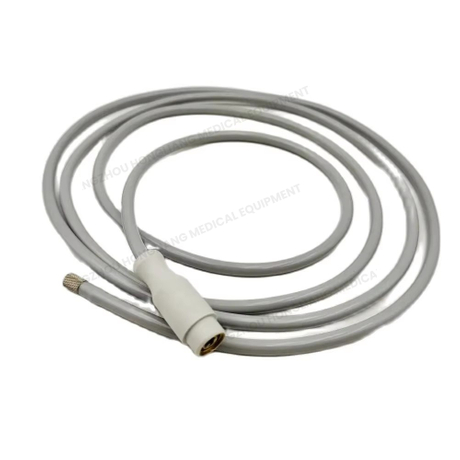

Patient monitors usually sit several feet away from the hospital bed. The standard sensor cable rarely reaches the monitor without causing tension. The SpO2 extension cable bridges this physical distance. It allows the patient to move comfortably while maintaining a secure connection to the bedside monitor. This structural component is necessary for continuous monitoring.
This cable does more than just add length. It must protect the low-voltage analog signal from degradation. Hospitals are environments filled with electromagnetic interference (EMI). Surgical diathermy machines, MRI scanners, and even motorized beds emit electrical noise. A high-quality extension cable features internal copper shielding. This shielding blocks EMI, ensuring the monitor receives a clean, accurate pulse wave.
Extension cables experience heavy physical abuse. Nurses constantly plug and unplug them. Beds roll over them. Common failure points include the connector pins and the strain relief boots at either end of the cable. Clinical engineers should inspect these cables monthly. Look for bent pins, cracked plastic housings, or exposed internal wires. A failing extension cable often mimics a failing sensor, leading to unnecessary replacement costs.
Clinical engineers spend significant time diagnosing signal failures. When a monitor displays a flatline or erratic waveform, the sensor is usually the first suspect. However, the issue often lies elsewhere in the signal chain. You must isolate the variable to avoid discarding functional equipment.
First, swap the sensor with a known working unit. If the problem persists, the issue is likely the extension cable. Inspect the cable for crush damage from bed wheels. Next, check the monitor's module port. Dust or bent pins inside the monitor receptacle will disrupt the low-voltage signal. Finally, evaluate the patient. Cold extremities, severe hypotension, or improper sensor placement will cause a functional sensor to fail. Educating nursing staff on proper placement and site rotation drastically reduces unnecessary service calls.
The physical connection between the cable and the monitor varies wildly across the industry. Common connector types include 7-pin circular, 9-pin rectangular, and standard DB9 interfaces. Procurement teams must map their entire monitor fleet to understand which connectors correspond to which departments.
Physical fit does not guarantee electronic compatibility. You might successfully plug a DB9 sensor into a DB9 extension cable, but the monitor may still display an error. This happens because the internal resistor values do not match the monitor's expected calibration curve. The pins might transmit the red and infrared signals on different channels. Always verify the specific module compatibility, not just the shape of the plastic plug.
Connector Type | Common Applications | Visual Identification |
|---|---|---|
DB9 (9-Pin D-Sub) | Older Nellcor, generic monitors | D-shaped metal shield with 9 pins |
7-Pin Circular | Specific Drager and Philips modules | Round plastic or metal plug with alignment notch |
14-Pin Rectangular | Masimo SET systems | Wide, flat connector with locking mechanism |
Oximax Purple | Nellcor Oximax technology | Distinctive purple housing with internal memory chip |
Clinical accuracy is the primary metric for any pulse oximetry equipment. Industry standards dictate that sensors must maintain an accuracy tolerance of ±2% to ±3% within the 70% to 100% saturation range. Below 70%, readings become inherently less reliable across all technologies. Clinical engineers must review the manufacturer's stated accuracy specifications before approving any purchase.
Regulatory compliance provides a baseline for safety. Buyers must verify FDA 510(k) clearance for use in the United States or CE marking for European markets. The equipment should also comply with ISO 80601-2-61, the specific standard for pulse oximeter equipment safety and performance. These certifications prove the device underwent rigorous independent testing.
Procurement teams must also address the issue of skin pigmentation. Request clinical trial demographic data from the manufacturer. Ensure the sensor was tested across diverse skin tones, including high melanin concentrations. Sensors that fail to account for varying pigmentation can delay interventions for certain patient populations. Transparency in clinical trial data is a hallmark of a reputable manufacturer.
Durability drives the long-term economics of reusable sensor fleets. Sensors face a harsh environment. They are dropped, stepped on, and tangled in bed rails. High-quality construction materials are essential. Look for cables reinforced with Kevlar fibers. Kevlar prevents the internal copper wires from snapping when the cable is pulled forcefully.
The outer jacket of the cable matters immensely. Medical-grade Thermoplastic Polyurethane (TPU) provides excellent resistance to bodily fluids and cleaning chemicals. It remains flexible over time, unlike cheaper PVC jackets that become brittle and crack. Robust strain relief at the sensor head and the connector plug prevents the wires from fraying at the most vulnerable bending points.
To evaluate durability during the procurement phase, clinical engineers should perform these physical checks:
Bend the cable at a 90-degree angle near the connector to test strain relief flexibility.
Inspect the optical lens housing for seamless ultrasonic welding to prevent fluid ingress.
Verify the spring tension in hard-clip sensors to ensure it does not weaken after repeated opening.
Check the gold plating on connector pins to ensure resistance against corrosion.
Continuous monitoring introduces risks to patient skin integrity. Hard-clip sensors apply constant pressure to the capillary bed. Prolonged use on the same digit can lead to pressure necrosis, especially in elderly patients with thin skin or compromised circulation. Nursing protocols typically require rotating the sensor site every four hours to prevent tissue damage.
Evaluate the materials used in the sensor construction. Soft silicone boots offer better pressure distribution than rigid plastics, reducing the risk of necrosis. For disposable sensors, assess the adhesive quality. The materials must be biocompatible, latex-free, and hypoallergenic. Aggressive adhesives tear fragile neonatal skin upon removal, while weak adhesives cause the sensor to fall off, triggering false alarms.
Sourcing medical cables requires strict vetting procedures. A qualified patient monitor accessories supplier must operate under stringent quality management systems. The baseline requirement is ISO 13485 certification. This internationally recognized standard proves the supplier maintains comprehensive quality controls specific to medical device manufacturing.
Audit the supplier's traceability processes. Every sensor and cable should carry a clear lot number and manufacturing date. If a defect occurs in the field, the supplier must have the capability to trace that specific batch back to the raw materials. Lack of traceability indicates a fragmented, unreliable manufacturing process that poses direct risks to patient safety.
Transparent warranty terms protect hospital budgets. Reusable sensors should carry a minimum 12-month warranty against manufacturing defects. Disposable sensors should come with an out-of-box guarantee. Read the fine print regarding cable strain and physical damage. A supplier that stands behind their construction quality will offer straightforward replacement policies without excessive pushback.
Supply chain stability is equally critical. Clinical downtime is unacceptable. Evaluate the supplier's ability to maintain safety stock in domestic warehouses. Ask about their historical backorder rates during peak demand seasons. A reliable partner manages inventory proactively, ensuring your facility receives critical monitoring accessories exactly when needed, regardless of global shipping disruptions.
Audit your current patient monitor fleet to map exact pin configurations and software modules across all departments.
Standardize your disinfection protocols using only manufacturer-approved solvents to prevent optical lens degradation.
Transition high-acuity and isolation wards entirely to single-patient-use disposable sensors to eliminate cross-contamination risks.
Request clinical trial demographic data from your supplier to verify sensor accuracy across diverse skin tones.
A: A reusable sensor typically lasts between 6 to 12 months under normal clinical use. Replacement depends entirely on physical condition. If you notice cracked cables, bent pins, or a clouded optical lens that fails to calibrate, replace the unit immediately regardless of its age.
A: No. Adult sensors are designed for patients over 40kg. Using them on a child causes ambient light interference because the clip cannot seal properly around a small finger. This misalignment leads to inaccurate saturation readings and unreliable pulse rates.
A: This alarm usually indicates a break in the internal wiring, often near the strain relief boot. It can also occur if the sensor lens is dirty, blocking the light transmission, or if there is a mismatch between the sensor's technology and the monitor's calibration module.
A: Yes. Dark nail polish, particularly black, blue, or green, absorbs the red and infrared light emitted by the sensor. This interference blocks the optical pathway to the capillary bed, resulting in artificially low readings or a complete failure to capture a signal.
A: Nellcor and Masimo are proprietary signal processing technologies. They use different algorithms to filter motion artifacts and calculate saturation. Sensors are wired specifically for one technology or the other. They are not interchangeable on the same monitor module.
A: Wipe the sensor gently using a soft cloth dampened with 70% isopropyl alcohol or a mild hospital-grade disinfectant. Never submerge the sensor in liquid, never pour fluids directly onto the lens, and never subject the sensor to steam autoclaving.
A: Patient movement, shivering, or seizures cause venous blood to slosh within the tissue. The photodetector misinterprets this movement as the pulsatile flow of arterial blood. This confuses the monitor's algorithm, leading to erratic pulse rates and fluctuating oxygen saturation numbers.
