Accurate Fraction of Inspired Oxygen (FiO2) measurement is a non-negotiable requirement in life-support and anesthesia equipment. Clinical engineers constantly manage sensor degradation, which is an unavoidable chemical reality rather than a mechanical flaw. Relying on reactive maintenance introduces severe operational risks to the hospital environment. Unexpected calibration failures cause sudden ventilator downtime, directly compromising patient safety during critical care or surgical procedures. It also creates a massive logistical strain when managing expiring inventory in the biomedical shop. Implementing a structured, evidence-based oxygen sensor replacement protocol eliminates these risks. Clinical engineering teams need a reliable framework to evaluate replacement intervals, assess supplier credibility, and mitigate risks when sourcing and installing these components. We will break down the chemical mechanics behind sensor depletion, identify impending failures before they trigger machine alarms, and provide actionable strategies for inventory management and supplier evaluation.
Predictable Degradation: Galvanic medical oxygen sensors have a finite lifespan dictated by chemical depletion; proactive replacement prevents mid-operation calibration failures.
Sourcing Viability: Rigorous evaluation of an oxygen sensor manufacturer requires verifying ISO 13485 compliance, FDA clearance, and documented cross-sensitivity data.
Inventory Realities: Proper stock rotation is critical, as oxygen sensors actively deplete from the date of manufacture, regardless of whether they are installed or sitting on a shelf.
Establishing a healthy baseline is the first step in managing any medical oxygen sensor. Clinical engineers must define specific success criteria for sensor performance to avoid guessing during preventative maintenance. A fully functional galvanic sensor generates a predictable millivolt (mV) output based on the partial pressure of oxygen it encounters. In a standard room air environment featuring 21% oxygen, a healthy sensor typically outputs between 9 and 14 mV. When exposed to a 100% oxygen environment during a calibration cycle, this output scales proportionally, often reaching between 45 and 65 mV depending on the specific make and model. Tracking these baseline voltage outputs allows biomedical technicians to monitor the gradual decline in sensor health over months of use. When the maximum output at 100% oxygen falls below the manufacturer's specified threshold, the sensor can no longer provide accurate FiO2 readings. Defining these exact voltage parameters transforms sensor evaluation from a reactive guessing game into a precise, data-driven diagnostic process. You can log these values in your computerized maintenance management system (CMMS) to track degradation curves.
Galvanic cells operate through a continuous, irreversible chemical reaction. Oxygen molecules diffuse through a thin fluoropolymer (PTFE) membrane at the top of the sensor housing. These molecules enter a potassium hydroxide (KOH) electrolyte solution. Inside this solution, the oxygen reacts directly with a lead anode. This oxidation process consumes the lead anode while generating a microampere electrical current. The ventilator's internal circuitry measures this current, applies a temperature compensation algorithm, and translates it into an oxygen concentration percentage displayed on the screen. Because the lead anode physically oxidizes and depletes during this reaction, sensor degradation remains continuous. The reaction occurs as long as oxygen is present. This means the sensor depletes even when the ventilator is turned off and stored in an equipment bay, provided the sensor remains exposed to ambient air. Understanding this chemical inevitability helps clinical engineers recognize that sensor failure is a matter of when, not if. You cannot reverse this oxidation process.
Voltage outputs provide critical data, but physical inspections reveal equally important diagnostic clues that software might miss. Technicians must routinely examine the exterior of the sensor housing during every preventative maintenance cycle. Electrolyte leakage serves as a primary indicator of catastrophic failure. Potassium hydroxide is highly caustic. If it breaches the internal seals, it often forms white, crystalline deposits around the base of the sensor or the electrical contacts. Finding these crystals dictates immediate replacement to prevent the caustic liquid from damaging the ventilator's internal wiring harness or breathing block. Furthermore, inspect the sensing membrane for any signs of physical damage, discoloration, or crystallization. A compromised membrane alters the diffusion rate of oxygen molecules, leading to erratic voltage outputs and false alarms. Housing cracks or warped contact pins also compromise the structural integrity of the component. Visual anomalies often precede electronic failure codes, making manual inspection a mandatory part of your workflow.
Empirical indicators often signal impending failure before the ventilator triggers a hard error code or audible alarm. Sluggish response times are a primary symptom you will notice on the bench. If the sensor takes unusually long to register a change from 21% to 100% oxygen during a test, the internal chemical reaction is slowing down due to anode depletion. Another critical indicator is the inability to complete a 100% oxygen calibration. The ventilator attempts to span the sensor to its maximum expected voltage. If the depleted lead anode cannot generate sufficient current, the calibration fails and the machine locks out the FiO2 monitoring function. You may also observe fluctuating baseline voltages during steady-state ventilation. If the FiO2 reading drifts randomly by 3% to 5% while the delivered oxygen concentration remains constant, the sensor is losing its stability. Recognizing these early warning signs allows clinical engineers to schedule replacements during routine downtime rather than dealing with emergency failures during active patient care.
Clinical engineering departments generally adopt one of two maintenance philosophies for gas monitoring components. The run-to-failure approach maximizes the absolute lifespan of each individual sensor. Technicians only replace the component when the ventilator generates a calibration error or fails a pre-use check. While this maximizes the use of the consumable, it introduces severe operational risks to the clinical environment. A sensor failing during a critical surgical procedure or intensive care ventilation forces clinical staff to rely on secondary monitoring or swap equipment under extreme pressure. Scheduled preventative maintenance eliminates this risk entirely. By replacing the sensor at predefined intervals based on data, engineers ensure the equipment remains clinically ready at all times. Preventative maintenance transforms an unpredictable emergency into a scheduled, manageable task. The operational stability gained through proactive scheduling far outweighs the marginal savings of extracting every last day of life from a depleting sensor.
Developing an accurate replacement schedule requires analyzing how the equipment is actually used in your specific facility. Time-based schedules offer administrative simplicity. Replacing sensors every 12 or 18 months aligns easily with annual PM cycles. However, usage-based metrics provide a much more accurate reflection of sensor health. A ventilator oxygen sensor degrades faster when exposed to higher oxygen concentrations. A machine used primarily in a neonatal intensive care unit might frequently deliver 80% to 100% oxygen. This high-concentration exposure accelerates the oxidation of the lead anode significantly. Conversely, a transport ventilator primarily delivering ambient air will experience a much slower depletion rate. High-frequency oscillatory ventilation (HFOV) also places unique demands on the sensor due to rapid pressure changes and continuous high-flow gas delivery. Clinical engineers must adjust their baseline replacement schedules based on the specific clinical application and average FiO2 delivery of each individual machine.
The physical location of the sensor within the breathing circuit drastically impacts its functional lifespan and daily reliability. Sensors placed in the inspiratory limb are highly susceptible to moisture accumulation. Active heated humidification systems generate significant water vapor to condition the gas for the patient. If this vapor condenses on the sensor's fluoropolymer membrane, it creates a physical barrier. Oxygen molecules cannot diffuse through water efficiently. This moisture occlusion leads to artificially low FiO2 readings and frequent calibration failures. Proper placement requires positioning the sensor upstream of the active humidifier whenever possible. If the sensor must reside in a high-humidity zone due to the ventilator's design, technicians must ensure water traps are correctly positioned and frequently emptied by the respiratory therapy team. Managing condensation prevents premature sensor failure and ensures the chemical reaction proceeds without physical interference.
Ambient environmental conditions play a significant role in sensor durability, even before the part is installed. Temperature directly influences the rate of the internal chemical reaction. Higher ambient temperatures accelerate the oxidation of the lead anode, reducing the overall lifespan of the component. Storage areas and clinical environments must maintain controlled temperatures to optimize longevity. Humidity levels outside the breathing circuit also affect the electrical contacts. High ambient humidity can cause oxidation on the connection pins, leading to erratic signal transmission to the main board. Furthermore, exposure to specific anesthetic agents can impact the sensor membrane over time. While modern sensors are designed to resist halogenated agents, prolonged exposure in closed-loop anesthesia systems can still cause gradual degradation of the internal seals. Documenting these environmental variables helps engineering teams fine-tune their replacement intervals for specific hospital zones.
The market for replacement sensors divides broadly into two categories. Original Equipment Manufacturers (OEM) produce sensors specifically branded and validated for their own ventilators. These parts guarantee seamless integration but often command a premium. The alternative category consists of specialized aftermarket providers. These companies focus exclusively on manufacturing medical sensors and compatible components. High-quality aftermarket providers engineer their products to meet or exceed the original specifications. Evaluating an oxygen sensor manufacturer requires distinguishing between reputable medical device companies and unverified generic suppliers. Clinical engineers must navigate this landscape to find reliable components that ensure patient safety while optimizing departmental budgets. You must demand transparency from any vendor you consider.
Vetting an alternative supplier demands rigorous technical scrutiny. You cannot compromise on regulatory compliance when dealing with life-support equipment. Any prospective oxygen sensor supplier must demonstrate strict adherence to ISO 13485 quality management standards for medical devices. Furthermore, the specific sensor models must carry appropriate regulatory clearances, such as a CE mark or FDA 510(k) clearance. Traceability is another mandatory criterion. The supplier must provide clear lot numbers and manufacturing dates on every individual package. Ask prospective suppliers for their lot testing protocols. A reliable supplier tests a statistical sample of every production batch to verify voltage outputs and response times before shipping. Requesting documented cross-sensitivity data ensures the aftermarket sensor performs accurately in the presence of anesthetic gases. Thorough vetting eliminates the risks associated with substandard components.
Proprietary systems present unique sourcing challenges for biomedical teams. A modern Draeger oxygen sensor often integrates into a highly sophisticated, closed-loop ventilation architecture. These systems rely on precise voltage curves and specific response times to govern automated oxygen delivery and trigger safety alarms. Using non-OEM replacements in these environments requires careful validation. The aftermarket sensor must replicate the exact electrical characteristics of the original part. If the response time lags even slightly, the ventilator's software may trigger an alarm or deliver incorrect gas mixtures to the patient. Clinical engineers must also consider warranty implications. Review the equipment service contracts to determine if using third-party sensors voids specific warranty clauses. Successfully integrating alternative sensors into proprietary ecosystems requires extensive bench testing and careful documentation of performance parity.
Making an informed sourcing decision requires analyzing multiple variables simultaneously. The following matrix outlines the primary trade-offs when evaluating OEM versus validated third-party alternatives.
Evaluation Criteria | OEM Sensors | Validated Third-Party Sensors |
|---|---|---|
System Integration | Guaranteed compatibility with proprietary software and hardware. | Requires initial bench testing to verify voltage curves match OEM specs. |
Regulatory Compliance | Pre-validated as part of the original device clearance. | Must possess independent FDA 510(k) or CE mark documentation. |
Supply Chain Agility | Subject to manufacturer backorders and global shipping delays. | Often provides faster fulfillment through specialized distribution networks. |
Warranty Implications | Maintains original equipment service contracts seamlessly. | Requires review of contract terms regarding consumable parts usage. |
Diagnostic Reliability | Baseline performance matches factory specifications exactly. | Performance matches OEM if sourced from ISO 13485 certified facilities. |
Clinical engineers must interpret specification sheets accurately to ensure clinical compliance. A specification sheet provides the exact operational boundaries of the sensor. Look first at the nominal voltage output range in air. This confirms whether the sensor matches the ventilator's internal calibration expectations. Next, review the expected operating life, usually expressed in "% O2 hours." This metric calculates lifespan by multiplying the oxygen concentration by the hours of exposure. For example, a sensor rated for 500,000 % O2 hours will last significantly longer in ambient air than in a 100% oxygen environment. Verify the recommended storage temperatures and operating humidity ranges. Comparing these published specifications against the actual clinical environment allows engineers to predict real-world performance accurately. Never source medical equipment spare parts without reviewing the underlying technical data.
The T90 metric represents one of the most critical performance indicators on a specification sheet. T90 defines the time required for the sensor to reach 90% of its final stable reading after a sudden change in oxygen concentration. In breath-by-breath monitoring applications, speed is vital. If the T90 value is too slow, the sensor cannot track the rapid changes between inspiratory and expiratory gas mixtures accurately. A standard medical sensor typically features a T90 of less than 12 seconds, while high-performance models may achieve T90 times under 5 seconds. If an aftermarket sensor exhibits a slower T90 than the OEM specification, the ventilator may display delayed FiO2 values. This delay compromises the clinician's ability to make rapid adjustments during critical care ventilation. Always verify that the T90 metric meets the demands of the specific clinical application.
Sensors operate in complex gas mixtures, not just pure oxygen and nitrogen. Cross-sensitivity occurs when other gases interfere with the chemical reaction, causing false readings. Nitrous oxide (N2O) is a common interfering agent in operating rooms. Halogenated anesthetics like Sevoflurane, Isoflurane, and Desflurane can also impact sensor accuracy. High-quality specification sheets explicitly list the percentage of error introduced by these specific gases. The error margin must remain within clinically acceptable limits, typically less than 1% or 2% deviation. Furthermore, varying humidity levels can alter the partial pressure of oxygen, indirectly affecting the reading. Engineers must ensure the chosen sensor utilizes appropriate internal compensation mechanisms or chemical filters to resist these interferences. Failing to account for cross-sensitivity leads to inaccurate oxygen delivery in complex anesthesia environments.
Managing an inventory of galvanic sensors presents unique logistical challenges. Because the chemical depletion process begins the moment the sensor is manufactured and exposed to any oxygen, these parts cannot sit on a shelf indefinitely. Overstocking leads to massive financial waste as sensors expire before they are ever installed. Clinical engineering departments must implement strict first-in, first-out (FIFO) inventory rotation. You must align purchasing volumes closely with actual consumption rates. Relying on a responsive supplier who can deliver fresh stock regularly is far more efficient than hoarding parts in a hospital stockroom. Effective logistics ensure that every sensor pulled from the shelf possesses its maximum potential lifespan.

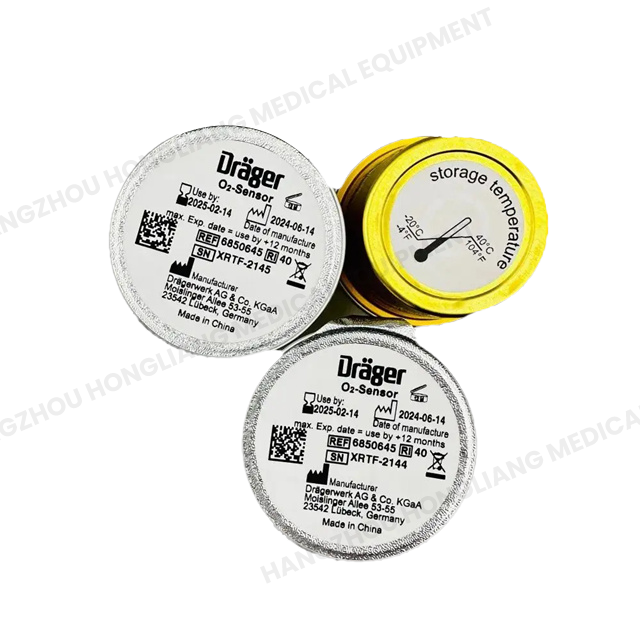

Understanding "use-by" dates is critical for inventory management. The manufacturer stamps a date on the packaging indicating the latest point the sensor should be installed to guarantee its stated operational life. To maximize shelf life, engineers must implement controlled storage protocols. Sensors should remain in their original, sealed packaging until the exact moment of installation. This packaging often limits ambient oxygen exposure. Furthermore, implementing cold-chain or temperature-controlled storage slows the internal chemical reaction. Storing uninstalled sensors in a dedicated refrigerator (typically between 5°C and 15°C) significantly reduces the oxidation rate of the lead anode. However, you must never freeze the sensors, as freezing destroys the liquid electrolyte and ruptures the internal housing. Proper thermal management preserves the chemical energy of the sensor during storage.
When a ventilator throws an FiO2 error, technicians must differentiate between a genuinely depleted sensor and transient system faults. Do not immediately discard the sensor. Follow these structured troubleshooting steps:
Check the electrical connections. Loose or oxidized pins on the sensor cable frequently cause erratic voltage drops that mimic sensor failure. Clean the contacts and reseat the connection.
Inspect the sensor membrane for moisture occlusion. If condensation blocks the fluoropolymer membrane, gently wipe it with a dry, lint-free cloth and allow it to air out.
Examine the breathing circuit for excessive water buildup in the traps. Empty any standing water that might be increasing humidity levels around the sensor housing.
Perform a manual voltage check using a multimeter. If the output falls below the manufacturer's threshold in a 100% oxygen environment, the chemical cell is depleted and requires replacement.
Installing a new sensor is only the first step; mandatory verification ensures clinical readiness. Never deploy a newly installed sensor without completing a full multi-point calibration. First, allow the new sensor to acclimate to room temperature for at least 30 minutes if it was stored in a refrigerator. Cold sensors produce lower voltage outputs and will fail initial calibration attempts. Once acclimated, initiate the ventilator's automated calibration sequence. This process typically involves exposing the sensor to 21% room air to establish the baseline, followed by exposure to 100% pure oxygen to set the upper span. Monitor the voltage values displayed in the service menu during this process to confirm they fall within the expected ranges. Finally, perform a standard circuit leak test to ensure the sensor housing is seated correctly and the O-rings provide an airtight seal. Completing these protocols prevents costly operational delays and guarantees accurate patient monitoring.
Treating sensor degradation as a predictable, data-driven preventative maintenance task is essential for clinical engineering success. Reactive repairs compromise patient safety and disrupt hospital operations. By understanding the chemical mechanics of galvanic cell depletion, engineers can implement precise replacement schedules based on actual clinical usage and environmental factors. Selecting the right supplier requires verifying regulatory compliance, reviewing technical specification data, and ensuring reliable supply chain logistics. Proactive management transforms an unpredictable consumable into a stable, reliable component of life-support systems.
Take the following actions to optimize your sensor management program:
Audit your current sensor inventory immediately to identify and isolate any stock approaching its expiration date.
Review historical calibration logs across your ventilator fleet to identify specific machines exhibiting rapid sensor drift trends.
Request comprehensive technical validation dossiers and cross-sensitivity data from any prospective aftermarket suppliers.
Implement a strict temperature-controlled storage protocol for all uninstalled sensors to maximize their functional shelf life.
Standardize your post-replacement procedures to include mandatory thermal acclimation and multi-point calibration before clinical deployment.
A: Standard OEM recommendations typically advise replacing the sensor every 12 to 24 months. However, this interval heavily depends on usage. Sensors exposed to high-frequency ventilation or continuous 100% oxygen environments deplete much faster and may require replacement every 6 to 9 months. Always monitor calibration logs to adjust schedules based on actual clinical demands.
A: Yes. Visual anomalies often precede electronic failure codes. Inspect the sensor for white crystalline deposits around the base, which indicate caustic electrolyte leakage. Check the sensing membrane for discoloration, physical damage, or moisture occlusion. Any physical damage or chemical leakage dictates immediate replacement, regardless of current voltage outputs.
A: No. Galvanic sensors rely on an irreversible chemical reaction. The lead anode physically oxidizes and consumes itself to generate the electrical current. Once the lead is depleted, the sensor can no longer produce the required voltage. Replacement is the only viable option for a depleted cell.
A: Premature failure usually stems from environmental factors. High ambient temperatures accelerate the chemical depletion. Excessive condensation on the PTFE membrane blocks oxygen diffusion, causing false readings. Physical shock can rupture the internal housing, while high ambient humidity can corrode the electrical contact pins, leading to signal loss.
A: Improper placement drastically reduces sensor lifespan. Positioning the sensor downstream of active heated humidifiers exposes it to heavy condensation. This moisture creates a physical barrier on the membrane, leading to false low readings and frequent calibration errors. Sensors should be placed in dry gas lines or upstream of humidification whenever possible.
A: Yes, provided they are rigorously vetted. Safe aftermarket sensors must be manufactured in ISO 13485 certified facilities. They must also hold independent regulatory clearances, such as an FDA 510(k) or a CE mark. Clinical engineers must verify that the aftermarket specifications, including response times and cross-sensitivity, match the OEM requirements.
